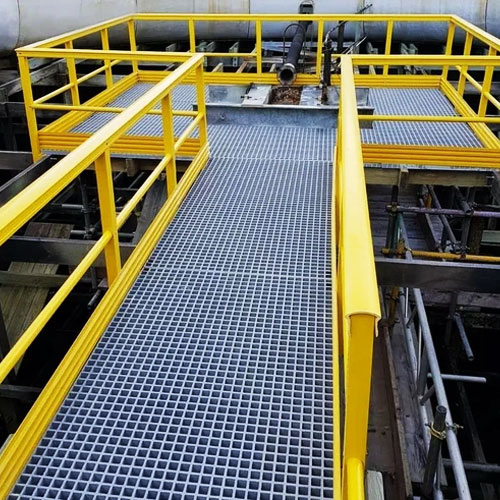

FRP Grating Solutions
At SV Composites & Engineering, we manufacture and supply high-quality FRP (Fiber Reinforced Polymer) gratings designed for superior strength, corrosion resistance, and long service life. Engineered to perform in the most demanding environments, our FRP gratings are ideal for applications across chemical plants, marine facilities, walkways, platforms, cooling towers, and more.
Key Features
- Corrosion & Chemical Resistant – Performs reliably in harsh and corrosive environments
- Non-Conductive – Ideal for electrical safety zones
- Fire Retardant – Manufactured with fire-resistant resin systems (available on request)
- Anti-Slip Surface – Molded top surface ensures worker safety
- Lightweight & High Strength – Easier to handle than steel without compromising on load-bearing capacity
- Low Maintenance – No painting or surface treatment required
| Material | FRP (Fiber Reinforced Polymer) with Isophthalic, Vinyl Ester, or Orthophthalic Resins |
| Grating Type | Molded Grating / Pultruded Grating |
| Standard Panel Sizes | 1220 mm x 3660 mm / 1000 mm x 3000 mm |
| Thickness Options | 25 mm, 30 mm, 38 mm, 50 mm |
| Mesh Size | 38x38 mm, 50x50 mm, 19x19 mm (custom sizes available) |
| Load Capacity | Up to 5000 kg/m² (varies with type and thickness) |
| Surface Finish | Concave / Gritted / Smooth |
| Color Options | Yellow, Grey, Green (custom RAL colors on request) |
| Fire Retardant | Available on request |
| Electrical Conductivity | Non-Conductive (Dielectric) |
Applications
-
Walkways & Platforms
-
Trench Covers
-
Stair Treads
-
Chemical Handling Areas
-
Offshore & Marine Structures
-
Power Plants & Cooling Towers
