FRP Boxes
FRP Boxes

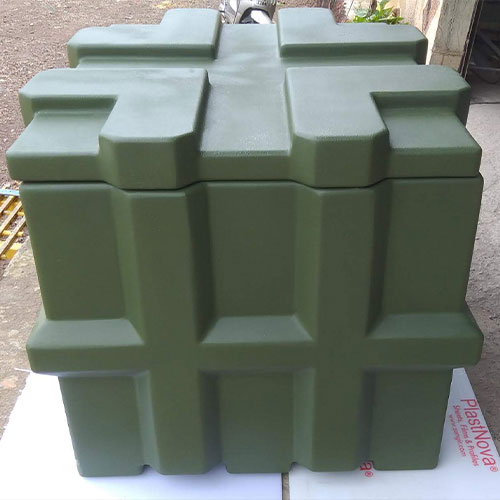

SV Composites & Engineering manufactures high-strength, corrosion-resistant FRP (Fibre Reinforced Plastic) Boxes designed for industrial and utility enclosures. These boxes are widely used for electrical junctions, instrumentation housing, control panels, and outdoor equipment protection due to their excellent thermal insulation, weather resistance, and non-conductive properties.
Our FRP boxes are a superior alternative to conventional metal or PVC enclosures, offering enhanced safety in corrosive, outdoor, and hazardous environments. They can be custom-molded in various sizes, wall thicknesses, and mounting configurations as per client requirements.
| Material | Fiber Reinforced Plastic (FRP) |
| Resin System | Isophthalic Polyester, Vinyl Ester, or Epoxy Resin |
| Wall Thickness | 3 mm – 10 mm (custom based on load and size) |
| Sizes | Standard & Custom sizes available (100mm x 100mm to 1000mm+) |
| Color | Grey, White, Green, or Custom RAL Colors |
| Ingress Protection | Up to IP65/IP67 (depending on design) |
| Flame Resistance | Available in fire-retardant grade (ASTM E84 Class I) |
| Thermal Insulation | Excellent – Non-metallic and low thermal conductivity |
| UV Resistance | UV stabilized for outdoor use |
| Mounting Options | Wall-mounted, pole-mounted, floor-standing |
Applications
-
Defense Equipment Storage & Transportation
-
Missile Components & Systems Storage
-
Electrical Junction Boxes
-
Control & Instrumentation Panels
-
Outdoor Telecom Equipment Housing
-
Corrosive Industrial Environments
-
FRP Enclosures for Transporting Defense Artillery & Gear
-
Hazardous & Explosive Areas (ATEX-rated options)
