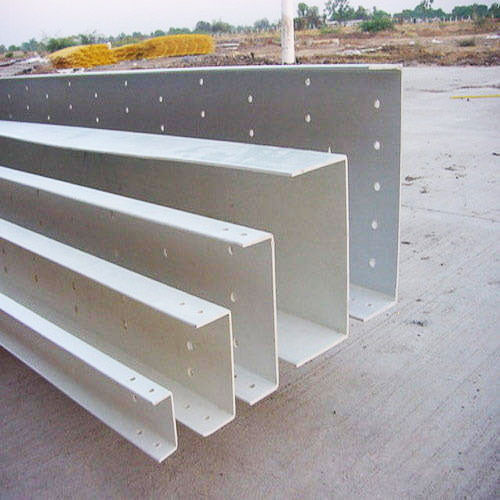

FRP Cable Trays
FRP Cable Trays
SV Composites & Engineering offers premium-quality FRP Cable Trays designed to support and manage electrical cables in industrial and commercial facilities. Our trays are manufactured from Fiberglass Reinforced Plastic (FRP) using high-grade resins to ensure outstanding corrosion resistance, mechanical strength, and electrical insulation.
FRP Cable Trays are a superior alternative to conventional steel or aluminum trays, particularly in aggressive environments such as chemical plants, coastal installations, and power stations. These trays are lightweight, flame retardant, non-magnetic, and UV-stabilized, making them ideal for both indoor and outdoor installations.
| Material | Fiberglass Reinforced Plastic (FRP) |
| Resin Options | Isophthalic Polyester, Vinyl Ester, Epoxy (Fire-retardant optional) |
| Tray Types | Ladder Type, Perforated Type, Solid Bottom, Trough Type |
| Width Range | 50 mm to 1000 mm (custom sizes available) |
| Height Range | 25 mm to 150 mm |
| Wall Thickness | 3 mm – 10 mm |
| Color | Grey, Yellow, Green (UV-stabilized, custom colors available) |
| Corrosion Resistance | Excellent – Suitable for saline, chemical, and industrial environments |
| Electrical Properties | Non-conductive, non-magnetic |
| Temperature Resistance | -40°C to +120°C (varies by resin type) |
| Fire Retardance | Available with ASTM E84 Class I rating |
| Mounting Options | Wall-mounted, ceiling-hung, floor-mounted |
Applications
-
Power Plants & Substations
-
Chemical & Petrochemical Plants
-
Water & Wastewater Treatment Facilities
-
Coastal & Offshore Installations
-
Food & Beverage Processing Units
-
Railways & Metro Infrastructure
-
High-Corrosion Zones & Outdoor Cabling Systems
